How much clearance do I need below the anchor?

For a 6 ft shock-absorbing lanyard with the anchor at D-ring level, roughly 18.5 ft. That is 6 ft of free fall plus 3.5 ft of deceleration distance, both capped by OSHA 1926.502(d)(16)(iii), plus harness stretch, the height of the suspended worker, and a safety margin. The last three are Stampede planning figures, not published values. Move the anchor overhead and the required clearance drops.

Why does the tool refuse to recommend anything when clearance is short?

Because the honest answer is a self-retracting lifeline or an overhead anchor, and selecting one against a computed clearance is the competent person’s call, not a distributor’s. Recommending a 6 ft lanyard for a configuration it cannot arrest would be worse than saying nothing. We stock FallTech self-retracting connectors and the full FallTech line is open, so the tool states the shortfall and hands the connector to your rep rather than sending you elsewhere.

Does this size dust extraction for concrete cutting?

No, and that is deliberate. OSHA 1926.1153 Table 1 requires an integrated water-delivery or dust-collection system matched to the specific tool. Stampede stocks neither the cutting tools nor the dust extractors, so the tool explains the compliance chain, sizes only the respiratory protection, and refers the engineering control to your tool vendor. A respirator by itself does not satisfy 1926.1153 or 1910.134.

Which ladder standard applies to your ladders?

ANSI A14.5, which governs portable reinforced-plastic ladders. Every ladder Stampede stocks is fiberglass. The metal-ladder standard does not apply here. Sizing also follows OSHA 1926.1053: no standing on a stepladder top cap or top step, a 4:1 pitch for extension ladders, and rails at least 3 ft above the landing.

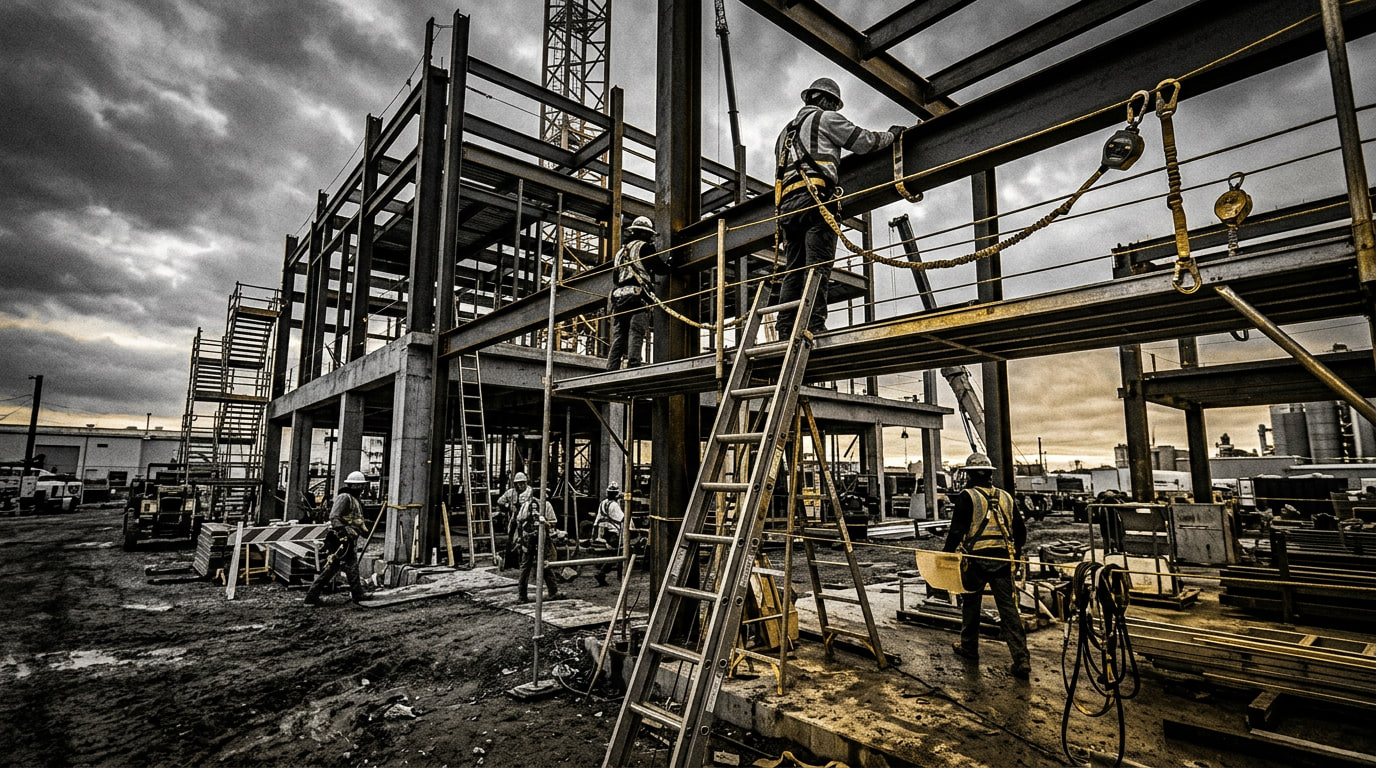

Ironworkers in full-body harnesses erecting structural steel at height, with extension ladders, self-retracting lifelines, and a crew working below

OSHA 29 CFR 1926

Size the job by what it actually involves.

Pick the scope of work and the applicable OSHA subparts activate. Fall protection, ladders, containment, dust control, and PPE, matched to in-stock Stampede units, ready to quote.

How this estimate works

One job profile, then the scope of work gates the rest. Elevated work brings in OSHA Subpart M and the ANSI Z359 clearance math. Ladder access brings in OSHA 1926.1053 and ANSI A14.5, the fiberglass ladder standard. Interior work brings in containment and surface protection. PPE under Subpart E is always on. Concrete cutting is advisory only: OSHA 1926.1153 Table 1 requires an integrated water-delivery or dust-collection system matched to the tool, and Stampede stocks neither the tools nor the extractors, so that pair comes from your tool vendor. The 6 ft free-fall and 3.5 ft deceleration limits are OSHA caps; harness stretch, worker height, reach, and the safety margin are labeled Stampede planning figures. Stampede is a distributor, not a construction contractor. The competent person of record makes the final determination.

Construction

Jobsite safety and containment calculator

Every recommendation is an in-stock Stampede unit. No prices shown, request a quote and a rep confirms availability and pricing.

Area 1Length (ft)Width (ft)Ceiling (ft)

Crew sizeBuilding status

What does this job involve?Elevated work above 6 ftOSHA 1926.501(b)(1)Ladder accessOSHA 1926.1053Interior or occupied-building workBest practiceConcrete cutting, coring, or grindingOSHA 1926.1153

Only the modules you select are sized. Concrete cutting is advisory only, because the OSHA Table 1 engineering control is not a Stampede line.

Enter the work area dimensions and pick the scope of work to size the jobsite plan.

The Method

What the scope of work turns on

The calculator sizes the plan. Here is the compliance chain it feeds, from fall-arrest clearance and ladder duty rating through containment, dust control, and the PPE that stays on every job.

Construction jobsite safety planning: a stocked PPE cabinet with full-body harnesses and respirators, a fiberglass stepladder, rolling scaffold, and a worker inspecting fall-arrest hardware, annotated with ladder anchor stability, fall-arrest harness integrity, OSHA 29 CFR 1926 compliance, and personal protective equipment.
